Decorative Panels

The Altyno is decorative films that come with adhesive. It is consisting of sheets of resin film with adhesive on the reverse side. They are used for fittings at hotels, offices, commercial facilities, large commercial complexes and more.

Product Description

Altyno

  • Can be constructed using other materials and finishes.
  • A flexible material that can be used for curved surfaces.

A rotogravure-processed premium design resin film with a pressure resistant adhesive on the underside. Boasts excellent flexibility and so can be used with the types of curved surfaces where standard panels cannot.

Specifications

SizeThicknessFeatures
W1,220mm×L50m
(Some products have a length of 30 to 45 m)
Approx. 0.2mm
(Excluding release paper)
Enacted in July 2003
F four-star certification (JIS highest rating) related to the revised Building Standards Act (F ☆☆☆☆)

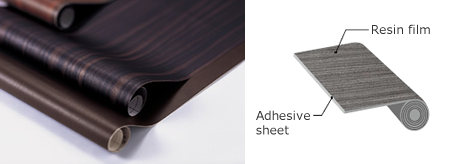

Composition

Altyno HD

Altyno HD designed with a high level of scuff resistance that keeps your product beautiful.
The product is resistant to abrasions and dirt.

This product is recommended for heavy-duty usage such as repair of elevators and toilet booths.

Resilient against dirt

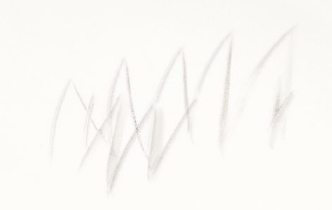

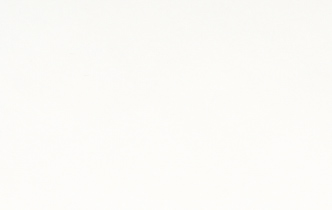

Example: black rubber

  • General product

  • Altyno HD

Resilient against scuffs

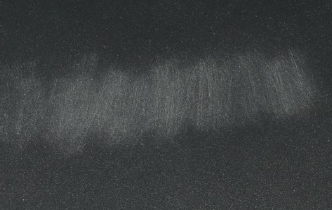

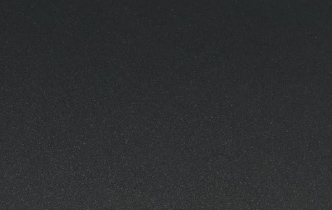

Example: steel wool

  • General product

  • Altyno HD

  • These are measured values and are not guaranteed values.

Altyno for bathrooms and more

Altyno products that are antibacterial and antifungal can also be used in bathrooms, and more.

Altyno product with antibacterial and antifungal treatment can be used in areas where water circulates, such as bathrooms and washrooms.

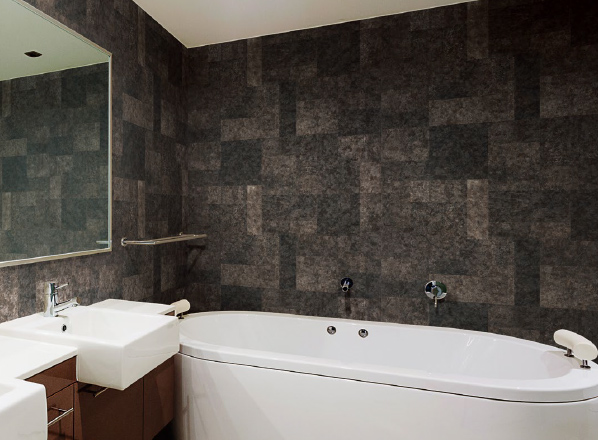

  • VBQ 18327C

Antibacterial and antifungal

Antibacterial (What are SIAA marks?)

The SIAA mark is shown on products which conform to quality control and information disclosure standards outlined in the guidelines of the Society of International sustaining growth for Antimicrobial Articles (SIAA).

  • SIAA for KOHKINの図

    VBK・VBM

  • SIAA for KOHKINの図

    VBQ-C

  • SIAA for KOHKINの図

    VBQ-A・VBW

Antifungal (What is antifungal?)

  • Antifungal testing has been performed using a method specified by the SIAA.
  • Antifungal treatment does not serve to destroy mold.
  • Mold may form depending on the usage conditions.
  • This product meets safety criteria of SIAA.
  • SIAA防カビ加工の図

    VBK・VBM・VBQ-C

  • SIAA防カビ加工の図

    VBQ-A・VBW

Cautions

  • When installing in areas where water circulates, use a water-resistant substrate and implement moisture resistance countermeasures such as pasting one sheet over another on the seams of the films or caulking.
  • High pressure laminates with the same patterns cannot be used in shower rooms or areas where water splashes around.

Altyno EX

An Altyno product that is built to be highly weather resistance and which can also be used on exterior walls. It features excellent weather resistance and durability.

Special surface processing has resulted in superior weather resistance. The product provides around five years of weather resistance when used on outdoor vertical surfaces*. There are 15 different patterns available, which are the same as Altyno for interiors.

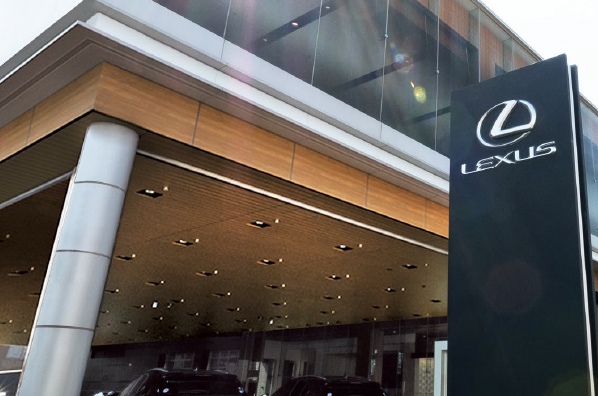

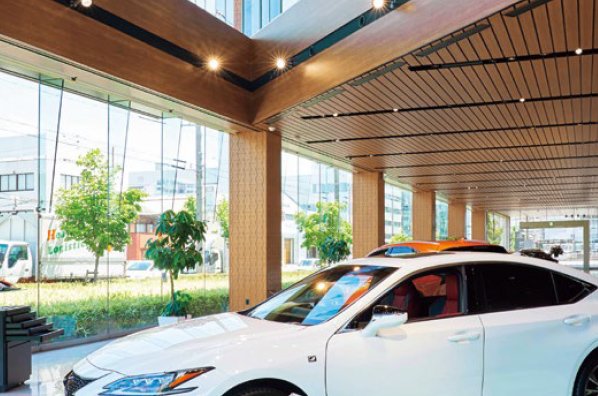

  • LEXUS Showa
    Design: CHUNICHI DESIGN
    Construction: TAKENAKA CORPORATION

  • VEX 2030M

Cautions

  • The product is assumed to be used in Japan.
  • The number of years of weather resistance shown is a projection based on testing performed by AICA.
    It does not guarantee service life of the product.

Altyno Louver

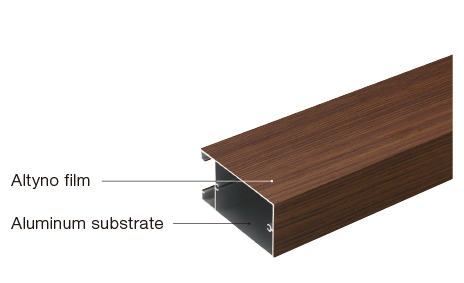

Aluminum louver wrapped with Altyno film transforms interiors, ceilings, and exteriors into vibrant, stylish spaces.

  • We can also deliver small lots (from 30 m) and orders to the nearest millimeter.
  • There're three types of construction materials suitable for various installation locations and these are also easy to install.
  • Introducing Altyno Louver EX for exteriors, a louver-dedicated product that uses our Altyno EX for exteriors.
